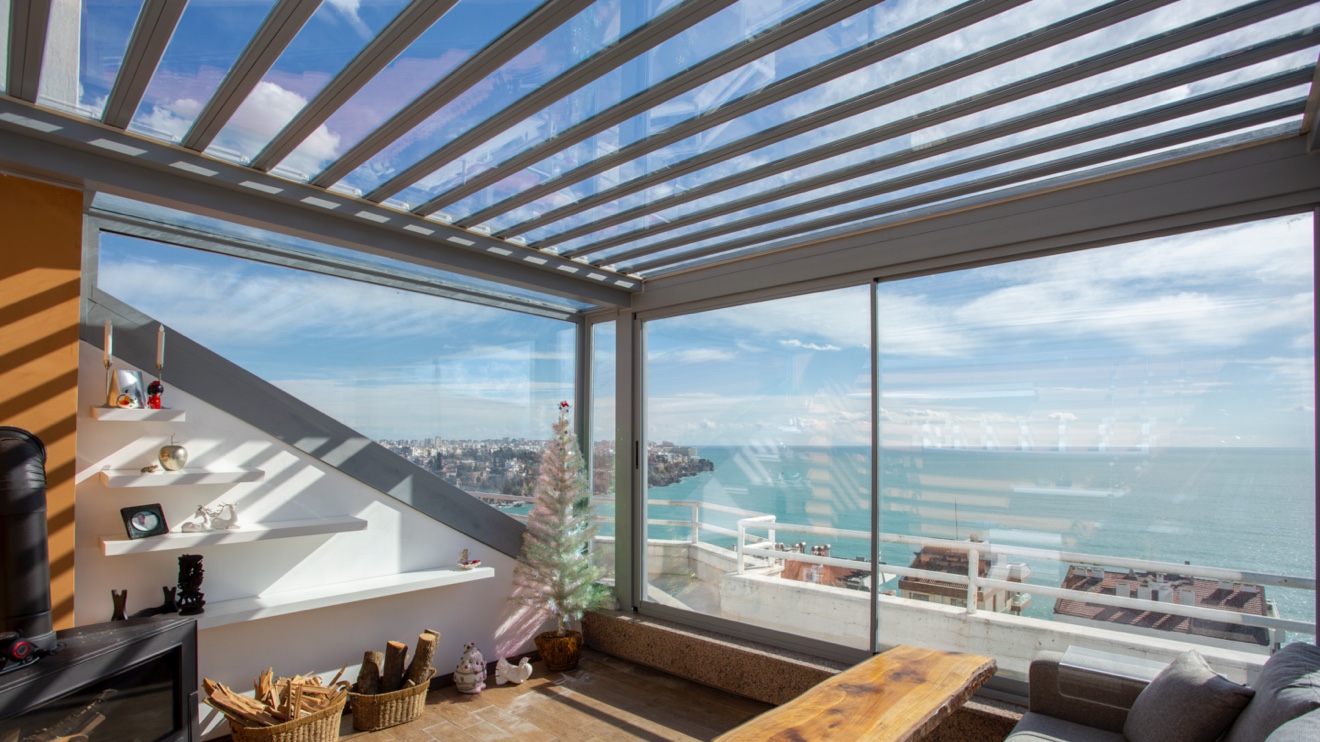

Bioclimatic Systems, which can be applied in every space, offer folding and retracting movements that no other sunroof system in the world offers. Thanks to the glass lamellas that can be opened at any angle, it provides the opportunity to benefit from daylight at the desired rate.
Thanks to the folding movement of the glass lamellas, it does not lose its shading feature while ventilating from the roof. Even when the system is open, it provides ventilation without being affected by rain and snow thanks to the specially designed glass lamellas.
Thanks to the folding movement of the glass lamellas, the external cleaning of the lamellas can be cleaned from the inside without having to go to the roof. Aluminum parts are colored with electrostatic oven paint; application can be made in any desired color. It is long-lasting thanks to the electrostatic oven paint. Bioclimatic Systems are the best solution for places such as restaurants and cafes where smoking is prohibited.

ASPENDOS GLASS SERIES BIOCLIMATIC ROLLING ROOF TECHNICAL SPECIFICATIONS

1) THE lamellas used in the system are used as 4+12+4 COMFORT INSULATED TEMPERED. SYSTEM WIDTH IS MAXIMUM 300 CM.

2) Aluminum profiles used in the system are 6063 – T6 F25 (7580 Briner Hardness).

3) The most important feature of the system is that the lamellas are grooved inside themselves so that dust, water, etc. dirt on the upper part does not spill down during the movement of the lamellas.

4) The system can be installed flat or inclined when necessary. Since there are grooves on 4 sides, water intake is prevented without any inclination. Water is drained from the front foot profiles.

5) The panels work axially and have the ability to retract when desired. (This feature is important in terms of being able to provide ventilation and shading at the same time)
6) It provides full transparency within the space thanks to the glass lamellas used in the system.
7) Metal accessories are first galvanized and then painted with electrostatic oven paint. The lamellas move comfortably and silently thanks to 608 ZZ stainless bearings.
8) The panels should be able to open at a minimum angle of 100 degrees axially. (Important to block sunlight coming from the facade)
9) The opening and closing movement of the ceiling cover can be used with remote control and optional android or apple control. (4-season comfort is provided with rain, sun, wind sensors optionally.
10) All aluminum profiles are painted with electrostatic powder coating technology.
11) It moves with a T-10 timing belt between the motor and the moving mechanism.
12) The screws used in the system are chrome stainless.
13) Flange application screws should be M8*80 Steel dowel with sleeves and galvanized coating. (To avoid damaging the floor insulation)
14) The wicks to be used in the system are EPDM heat resistant.
15) Sealing adhesive is used for water insulation.
16) The system to be used has a 2 (two) year motor and 2 year mechanical warranty.
17) Each system module consists of vertical and horizontal carrier profiles, vertical main carriers should be 128*170*3, horizontal main carriers should be 128*170*3 mm.
18) System modules have static properties to meet 50kg+25kg / m² distributed load and 50kg/m² wind load
19) Night lighting is provided with hidden LED application on 4 sides of the system, power can be reduced and increased with dimmer light receiver
